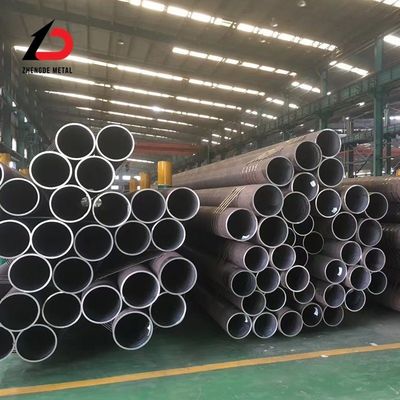

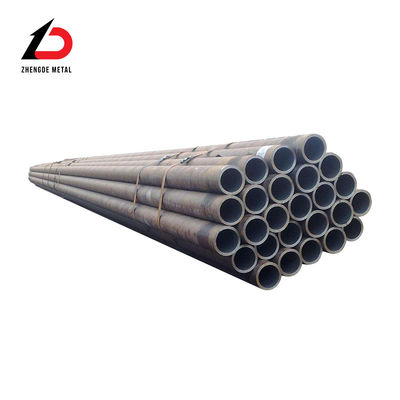

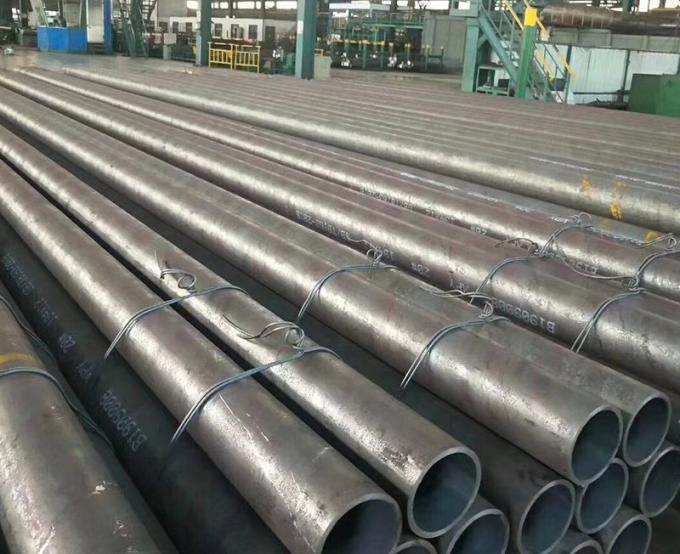

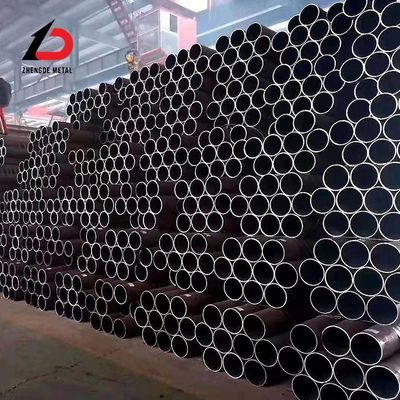

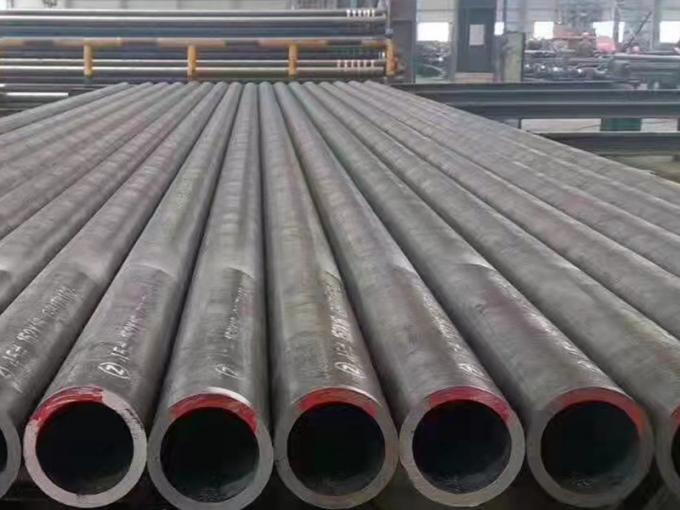

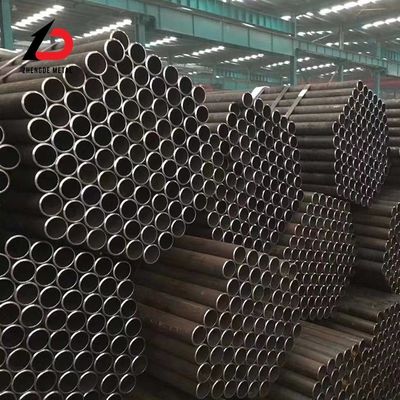

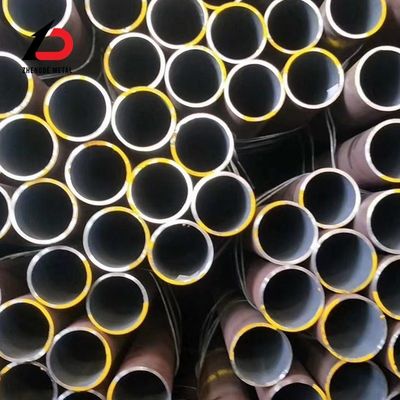

Pipa baja bergelombang panas Zhengde memiliki garis silang berongga dan banyak digunakan sebagai pipa untuk mengangkut cairan, seperti pipa untuk mengangkut minyak, gas alam, gas, air,dan bahan padat tertentu. Dibandingkan dengan baja padat seperti baja bulat, pipa baja lebih ringan beratnya ketika kekuatan lentur dan torsi adalah sama, dan itu adalah baja bagian ekonomis..
| tebal Φ |
3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 8 | 8.5 | 9 | 10 | 12 |
| 32 | 2.146 | 2.46 | 2.762 | 3.052 | 3.329 | 3.594 | 3.847 | 4.088 | ||||||
| 38 | 2.589 | 2.978 | 3.354 | 3.718 | 4.069 | 4.408 | 4.735 | 5.049 | ||||||
| 42 | 2.885 | 3.323 | 3.749 | 4.162 | 4.562 | 4.951 | 5.327 | 5.691 | ||||||
| 45 | 3.107 | 3.582 | 4.044 | 4.495 | 4.932 | 5.358 | 5.771 | 6.172 | ||||||
| 50 | 3.477 | 4.014 | 4.538 | 5.049 | 5.549 | 6.036 | 6.511 | 6.973 | 7.423 | 8.286 | 8.699 | |||
| 54 | 3.773 | 4.359 | 4.932 | 5.493 | 6.042 | 6.578 | 7.103 | 7.614 | 8.114 | 9.075 | 9.538 | |||
| 57 | 3.995 | 4.618 | 5.228 | 5.826 | 6.412 | 6.985 | 7.546 | 8.095 | 8.632 | 9.667 | 10.167 | |||
| 60 | 4.217 | 4.877 | 5.524 | 6.159 | 6.782 | 7.392 | 7.99 | 8.576 | 9.149 | 10.259 | 10.796 | |||
| 63.5 | 4.476 | 5.179 | 5.869 | 6.548 | 7.214 | 7.867 | 8.508 | 9.137 | 9.754 | 10.95 | 11.529 | |||
| 68 | 4.809 | 5.567 | 6.313 | 7.047 | 7.768 | 8.477 | 9.174 | 9.858 | 10.53 | 11.838 | 12.473 | |||
| 70 | 4.957 | 5.74 | 6.511 | 7.269 | 8.015 | 8.749 | 9.47 | 10.179 | 10.876 | 12.232 | 12.892 | 13.539 | 14.797 | 17.164 |
| 73 | 5.179 | 5.999 | 6.807 | 7.602 | 8.385 | 9.156 | 9.914 | 10.66 | 11.394 | 12.824 | 13.521 | 14.205 | 15.537 | 18.052 |
| 76 | 5.401 | 6.258 | 7.103 | 7.935 | 8.755 | 9.563 | 10.358 | 11.141 | 11.912 | 13.416 | 14.15 | 14.871 | 16.277 | 18.94 |
| 89 | 6.363 | 7.38 | 8.385 | 9.378 | 10.358 | 11.326 | 12.281 | 13.225 | 14.156 | 15.981 | 16.875 | 17.756 | 19.483 | 22.787 |
| 108 | 7.768 | 9.02 | 10.259 | 11.486 | 12.701 | 13.903 | 15.093 | 16.27 | 17.436 | 19.729 | 20.858 | 21.973 | 24.168 | 28.41 |
| 133 | 11.178 | 12.725 | 14.261 | 15.783 | 17.294 | 18.792 | 20.278 | 21.751 | 24.662 | 26.098 | 27.522 | 30.334 | 35.809 | |
| 159 | 13.422 | 15.29 | 17.146 | 18.989 | 20.821 | 22.639 | 24.446 | 26.24 | 29.791 | 31.548 | 33.293 | 36.746 | 43.503 | |
| 219 | 18.601 | 21.209 | 23.805 | 26.388 | 28.959 | 31.517 | 34.064 | 36.598 | 41.629 | 44.126 | 46.61 | 51.543 | 61.259 | |
| 273 | 23.262 | 26.536 | 29.797 | 33.046 | 36.283 | 39.508 | 42.72 | 45.92 | 52.283 | 55.445 | 58.596 | 64.86 | 77.24 | |
| 325 | 27.75 | 31.665 | 35.568 | 39.458 | 43.337 | 47.202 | 51.056 | 54.897 | 62.542 | 66.346 | 70.137 | 77.684 | 92.629 | |
| 355 | 38.897 | 43.158 | 47.406 | 51.641 | 55.865 | 60.076 | 68.46 | 72.634 | 76.796 | 85.082 | 101.507 | |||
| 377 | 41.339 | 45.871 | 50.39 | 54.897 | 59.391 | 63.873 | 72.801 | 77.246 | 81.679 | 90.508 | 108.018 | |||
| 426 | 46.777 | 51.913 | 57.036 | 62.147 | 67.246 | 72.332 | 82.468 | 87.518 | 92.555 | 102.592 | 122.519 | |||
| 450 | 71.093 | 76.475 | 87.203 | 92.549 | 97.882 | 108.511 | 129.621 | |||||||
| 480 | 75.902 | 81.654 | 93.122 | 98.837 | 104.54 | 115.909 | 138.499 | |||||||
| 530 | 83.917 | 90.286 | 102.987 | 109.319 | 115.638 | 128.24 | 153.296 | |||||||
| 630 | 99.947 | 107.549 | 122.716 | 130.281 | 137.833 | 152.902 | 182.89 |
Kualitas pertama: produksi dan inspeksi sesuai dengan standar produksi yang ketat;
Keuntungan harga: diskon berdasarkan harga pasar riil;
Keamanan transaksi: Tidak akan ada kerugian dana pelanggan;
Jaminan purna jual: masalah pelanggan adalah masalah kami;
Kerjasama jangka panjang: jaminan kualitas, keuntungan harga, layanan tulus dapat berlangsung lama.

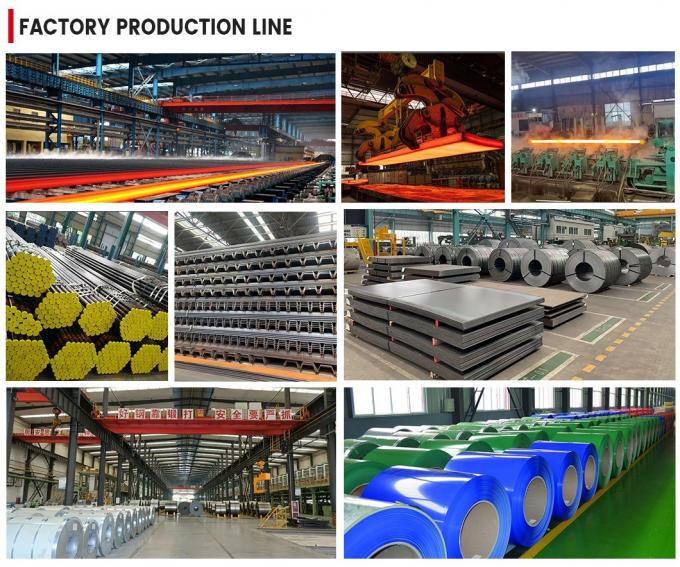

Shandong Zhengde Metal Manufacturing Co., Ltd.adalah perusahaan produksi dan penjualan yang mengintegrasikan kumparan baja bergulir panas, kumparan baja bergulir dingin, kumparan baja galvanis, kumparan baja berlapis warna, baja bagian, pipa baja, kawat baja, mesh logam,baja tahan karat, aluminium, tembaga dan produk logam lainnya terintegrasi perusahaan besar.dengan lebih dari 100 jalur produksi, 4 laboratorium yang diakui secara nasional, 2 pusat teknik, dan 5 pusat teknologi perusahaan.Amerika Selatan, Eropa, Afrika, Oseania, Timur Tengah, dan Asia Tenggara.
