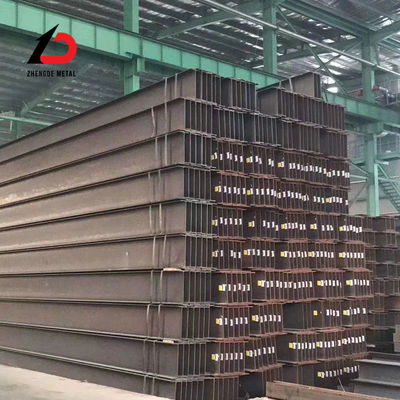

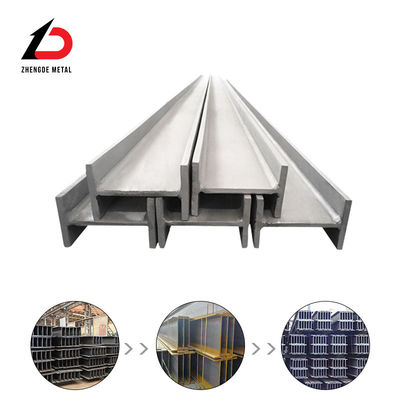

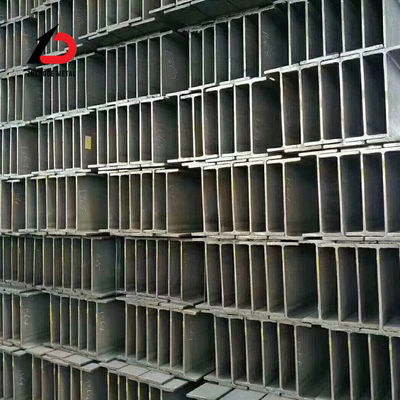

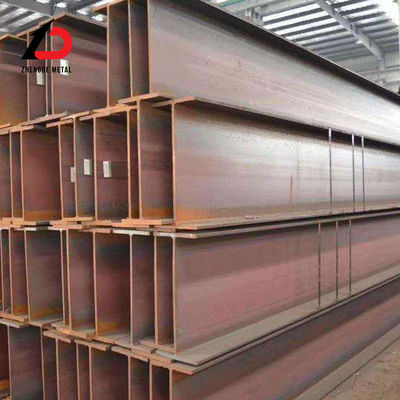

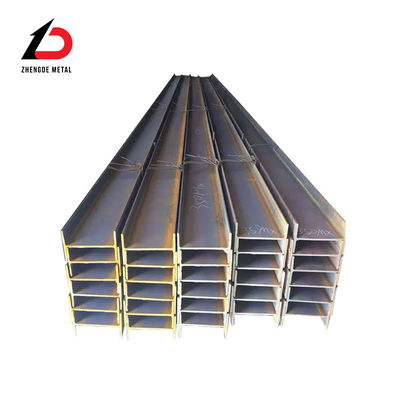

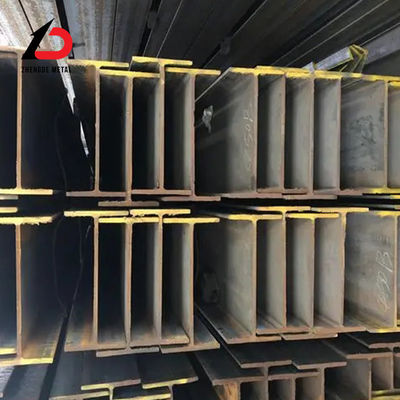

Baja berbentuk H adalah profil efisiensi tinggi dengan distribusi luas penampang yang lebih dioptimalkan dan rasio kekuatan/berat yang lebih wajar.Karena semua bagian dari baja berbentuk H diatur pada sudut lurus, baja berbentuk H memiliki keunggulan ketahanan lentur yang kuat di semua arah, konstruksi sederhana, penghematan biaya dan berat struktural ringan, dan telah banyak digunakan.
H-beam standar ASTM Amerika memiliki tiga kelas kualitas utama: A36, A572, A992, dll. Bahan A36 dan bahan A572 mewakili baja struktural karbon, dan A992 adalah baja paduan rendah.
Seri baja bagian standar Eropa UB - baja bagian H standar Inggris, digunakan dalam berbagai bangunan struktur baja, teknik kapal, energi.Baja saluran standar Eropa, H-beam standar Eropa, juga digunakan dalam konstruksi struktur keseluruhan platform minyak lepas pantai, LNG, kilang dan struktur baja modular lainnya.
1Standar implementasi spesifikasi:
BS EN 10365-2017 menggantikan standar lama EN10034-1993
2Standar pelaksanaan materi:
Bahan: S235JR/J0/J2, S275JR/J0/J2, S355JR/J0/J2/K2, S450J0
| Sinar Universal | ||||||||||||||||
| Spesifikasi:BS EN 10025-2:2004Dimensi:BS4-1:2005Toleransi:BS EN 10034:1993 | ||||||||||||||||
| Pengangkatan | h | b | s | t | Daerah | IX | Tidak | IX | - Tidak | Zx | Zy | |||||
| mmxmmxkg/m | mm | mm | mm | mm | cm2 | cm4 | cm4 | cm | cm | cm3 | cm3 | |||||
| 127x76x13 | 127.0 | 76.0 | 4.0 | 7.6 | 16.5 | 473 | 55.7 | 5.35 | 1.84 | 74.6 | 14.7 | |||||
| 152x89x16 | 152.4 | 88.7 | 4.5 | 7.7 | 20.3 | 834 | 89.8 | 6.41 | 2.10 | 110 | 20.2 | |||||
| 178x102x19 | 177.8 | 101.2 | 4.8 | 7.9 | 24.3 | 1,356 | 137 | 7.48 | 2.37 | 153 | 27.0 | |||||
| 203x102x23 | 203.2 | 101.8 | 5.4 | 9.3 | 29.4 | 2,105 | 164 | 8.46 | 2.36 | 207 | 32.2 | |||||
| 203x133x25 | 203.2 | 133.2 | 5.7 | 7.8 | 32.0 | 2,340 | 308 | 8.56 | 3.10 | 230 | 46.0 | |||||
| 203x133x30 | 206.8 | 133.9 | 6.4 | 9.6 | 38.2 | 2,896 | 385 | 8.71 | 3.17 | 280 | 57.5 | |||||
| 254x102x22 | 254.0 | 101.6 | 5.7 | 6.8 | 28.0 | 2,841 | 119 | 10.10 | 2.06 | 224 | 23.5 | |||||
| 254x102x25 | 257.2 | 101.9 | 6.0 | 8.4 | 32.0 | 3,415 | 149 | 10.30 | 2.15 | 266 | 29.0 | |||||
| 254x102x28 | 260.4 | 102.2 | 6.3 | 10.0 | 36.1 | 4,005 | 179 | 10.50 | 2.22 | 308 | 35.0 | |||||
| 254x146x31 | 251.4 | 146.1 | 6.0 | 8.6 | 39.7 | 4,413 | 448 | 10.55 | 3.36 | 351 | 61.0 | |||||
| 254x146x37 | 256.0 | 146.4 | 6.3 | 10.9 | 47.2 | 5,537 | 571 | 10.80 | 3.48 | 433 | 78.0 | |||||
| 254x146x43 | 259.6 | 147.3 | 7.2 | 12.7 | 54.8 | 6,544 | 677 | 10.90 | 3.52 | 504 | 92.0 | |||||
| 305x102x25 | 305.1 | 101.6 | 5.8 | 7.0 | 31.6 | 4,455 | 123 | 11.87 | 1.97 | 292 | 24.2 | |||||
| 305x102x28 | 308.7 | 101.8 | 6.0 | 8.8 | 35.9 | 5,366 | 155 | 12.23 | 2.08 | 348 | 30.5 | |||||
| 305x102x33 | 312.7 | 102.4 | 6.6 | 10.8 | 41.8 | 6,501 | 194 | 12.47 | 2.15 | 416 | 37.9 | |||||
| 305x127x37 | 304.4 | 123.4 | 7.1 | 10.7 | 47.2 | 7,171 | 336 | 12.30 | 2.67 | 471 | 54.5 | |||||
| 305x127x42 | 307.2 | 124.3 | 8.0 | 12.1 | 53.4 | 8,196 | 389 | 12.40 | 2.70 | 534 | 62.6 | |||||
| 305x127x48 | 311.0 | 125.3 | 9.0 | 14.0 | 61.2 | 9,575 | 461 | 12.50 | 2.74 | 616 | 73.6 | |||||
| 305x165x40 | 303.4 | 165.0 | 6.0 | 10.2 | 51.3 | 8,503 | 764 | 12.90 | 3.86 | 560 | 93.0 | |||||
| 305x165x46 | 306.6 | 165.7 | 6.7 | 11.8 | 58.7 | 9,899 | 896 | 13.00 | 3.90 | 646 | 108 | |||||
| 305x165x54 | 310.4 | 166.9 | 7.9 | 13.7 | 68.8 | 11,700 | 1063 | 13.00 | 3.93 | 754 | 127 | |||||
| 356x127x33 | 349.0 | 125.4 | 6.0 | 8.5 | 42.1 | 8,249 | 280 | 14.00 | 2.58 | 473 | 45.0 | |||||
| 356x127x39 | 353.4 | 126.0 | 6.6 | 10.7 | 49.8 | 10,172 | 358 | 14.30 | 2.68 | 576 | 57.0 | |||||
| 356x171x45 | 351.4 | 171.1 | 7.0 | 9.7 | 57.3 | 12,070 | 811 | 14.50 | 3.76 | 687 | 95.0 | |||||
| 356x171x51 | 355.0 | 171.5 | 7.4 | 11.5 | 64.9 | 14,140 | 968 | 14.80 | 3.86 | 796 | 113 | |||||
| 356x171x57 | 358.0 | 172.2 | 8.1 | 13.0 | 72.6 | 16,040 | 1108 | 14.90 | 3.91 | 896 | 129 | |||||
| 356x171x67 | 363.4 | 173.2 | 9.1 | 15.7 | 85.5 | 19,460 | 1362 | 15.10 | 3.99 | 1,071 | 157 | |||||
| 406x140x39 | 398.0 | 141.8 | 6.4 | 8.6 | 49.7 | 12,508 | 410 | 15.90 | 2.87 | 629 | 58.0 | |||||
| 406x140x46 | 403.2 | 142.2 | 6.8 | 11.2 | 58.6 | 15,685 | 538 | 16.40 | 3.03 | 778 | 76.0 | |||||
| 406x178x54 | 402.6 | 177.7 | 7.7 | 10.9 | 69.0 | 18,720 | 1021 | 16.50 | 3.85 | 930 | 115 | |||||
| 406x178x60 | 406.4 | 177.9 | 7.9 | 12.8 | 76.5 | 21,600 | 1203 | 16.80 | 3.97 | 1,063 | 135 | |||||
| 406x178x67 | 409.4 | 178.8 | 8.8 | 14.3 | 85.5 | 24,330 | 1365 | 16.90 | 3.99 | 1,189 | 153 | |||||
| 406x178x74 | 412.8 | 179.5 | 9.5 | 16.0 | 94.5 | 27,310 | 1545 | 17.00 | 4.04 | 1,323 | 172 | |||||
| 457x152x52 | 449.8 | 152.4 | 7.6 | 10.9 | 66.6 | 21,370 | 645 | 17.90 | 3.11 | 950 | 85.0 | |||||
| 457x152x60 | 454.6 | 152.9 | 8.1 | 13.3 | 76.2 | 25,500 | 795 | 18.30 | 3.23 | 1,122 | 104 | |||||
| 457x152x67 | 458.0 | 153.8 | 9.0 | 15.0 | 85.6 | 28,930 | 913 | 18.40 | 3.27 | 1,263 | 119 | |||||
| 457x152x74 | 462.0 | 154.4 | 9.6 | 17.0 | 94.5 | 32,670 | 1047 | 18.60 | 3.33 | 1,414 | 136 | |||||
| 457x152x82 | 465.8 | 155.3 | 10.5 | 18.9 | 104.5 | 36,590 | 1185 | 18.70 | 3.37 | 1,571 | 152.5 | |||||
| 457x191x67 | 453.4 | 189.9 | 8.5 | 12.7 | 85.5 | 29,380 | 1452 | 18.50 | 4.12 | 1,296 | 153 | |||||
| 457x191x74 | 457.0 | 190.4 | 9.0 | 14.5 | 94.6 | 33,320 | 1671 | 18.80 | 4.20 | 1,458 | 176 | |||||
| 457x191x82 | 460.0 | 191.3 | 9.9 | 16.0 | 104.5 | 37.050 | 1871 | 18.80 | 4.23 | 1,611 | 196 | |||||
| 457x191x89 | 463.4 | 191.9 | 10.5 | 17.7 | 113.8 | 41,020 | 2089 | 19.00 | 4.29 | 1,770 | 218 | |||||
| 457x191x98 | 467.2 | 192.8 | 11.4 | 19.6 | 125.3 | 45,730 | 2347 | 19.10 | 4.33 | 1,957 | 243 | |||||
| 533x210x82 | 528.3 | 208.8 | 9.6 | 13.2 | 104.7 | 47,540 | 2007 | 21.30 | 4.38 | 1,800 | 192 | |||||
| 533x210x92 | 533.1 | 209.3 | 10.1 | 15.6 | 117.4 | 55,230 | 2389 | 21.70 | 4.51 | 2,072 | 228 | |||||
| 533x210x101 | 536.7 | 210.0 | 10.8 | 17.4 | 128.7 | 61,520 | 2692 | 21.90 | 4.57 | 2,292 | 256 | |||||
| 533x210x109 | 539.5 | 210.8 | 11.6 | 18.8 | 138.9 | 66,820 | 2943 | 21.90 | 4.60 | 2,477 | 279 | |||||
| 533x210x122 | 544.5 | 211.9 | 12.7 | 21.3 | 155.4 | 76,040 | 3388 | 22.10 | 4.67 | 2,793 | 320 | |||||
| 610x229x101 | 602.6 | 227.6 | 10.5 | 14.8 | 128.9 | 75,780 | 2915 | 24.20 | 4.75 | 2,515 | 256 | |||||
| 610x229x113 | 607.6 | 228.2 | 11.1 | 17.3 | 143.9 | 87,320 | 3434 | 24.60 | 4.88 | 2,874 | 301 | |||||
| 610x229x125 | 612.2 | 229.0 | 11.9 | 19.6 | 159.3 | 98,610 | 3932 | 24.90 | 4.97 | 3,221 | 343 | |||||
| 610x229x140 | 617.2 | 203.2 | 13.1 | 22.1 | 178.2 | 111,800 | 4505 | 25.00 | 5.03 | 3,622 | 391 | |||||
| 610x305x149 | 612.4 | 304.8 | 11.8 | 19.7 | 190.0 | 125,900 | 9308 | 25.70 | 7.00 | 4,111 | 611 | |||||
| 610x305x179 | 620.2 | 307.1 | 14.1 | 23.6 | 228.0 | 153,000 | 11408 | 25.90 | 7.07 | 4,935 | 743 | |||||
| 610x305x238 | 635.8 | 311.4 | 18.4 | 31.4 | 303.3 | 209,500 | 15837 | 26.28 | 7.22 | 6,589 | 1,017 | |||||
| 686x254x125 | 677.9 | 253.0 | 11.7 | 16.2 | 159.5 | 118,000 | 4383 | 27.20 | 5.24 | 3,481 | 346 | |||||
| 686x254x140 | 683.5 | 253.7 | 12.4 | 19.0 | 178.4 | 136,300 | 5183 | 27.60 | 5.39 | 3,987 | 409 | |||||
| 686x254x152 | 687.5 | 254.5 | 13.2 | 21.0 | 194.1 | 150,400 | 5784 | 27.80 | 5.46 | 4,374 | 455 | |||||
| 686x254x170 | 692.9 | 255.8 | 14.5 | 23.7 | 216.8 | 170,300 | 6630 | 28.00 | 5.53 | 4,916 | 518 | |||||
| 762x267x134 | 750.0 | 264.4 | 12.0 | 15.5 | 171.0 | 150,700 | 4788 | 29.70 | 5.30 | 4,018 | 362 | |||||
| 762x267x147 | 754.0 | 265.2 | 12.8 | 17.5 | 187.2 | 168,500 | 5455 | 30.00 | 5.40 | 4,470 | 411.4 | |||||
| 762x267x173 | 762.2 | 266.7 | 14.3 | 21.6 | 220.4 | 205,300 | 6850 | 30.52 | 5.58 | 5,387 | 513.7 | |||||
| 762x267x197 | 769.8 | 268.0 | 15.6 | 25.4 | 250.6 | 240,000 | 8175 | 30.94 | 5.71 | 6,234 | 610.1 | |||||
| 838x292x176 | 834.9 | 291.7 | 14.0 | 18.8 | 224.0 | 246,000 | 7799 | 33.14 | 5.90 | 5,893 | 534.7 | |||||
| 838x292x194 | 840.7 | 292.4 | 14.7 | 21.7 | 264.8 | 279,200 | 9066 | 33.63 | 6.06 | 6,641 | 620.1 | |||||
| 838x292x226 | 850.9 | 293.8 | 16.1 | 26.8 | 288.6 | 339,700 | 11360 | 34.31 | 6.27 | 7,985 | 773.3 | |||||
| 914x305x201 | 903.0 | 303.3 | 15.1 | 20.2 | 255.9 | 325,300 | 9423 | 35.65 | 6.07 | 7,204 | 621.4 | |||||
| 914x305x224 | 910.4 | 304.1 | 15.9 | 23.9 | 285.6 | 376,400 | 11240 | 36.30 | 6.27 | 8,269 | 739 | |||||
| 914x305x253 | 918.4 | 305.5 | 17.3 | 27.9 | 322.8 | 436,300 | 13300 | 36.76 | 6.42 | 9,501 | 870.8 | |||||
| 914x305x289 | 926.6 | 307.7 | 19.5 | 32.0 | 368.3 | 504,200 | 15600 | 37.00 | 6.51 | 10,880 | 1,014 | |||||
| 914x419x343 | 911.8 | 418.5 | 19.4 | 32.0 | 437.3 | 625,800 | 39160 | 37.83 | 9.46 | 13,730 | 1,871 | |||||
| 914x419x388 | 921.0 | 420.5 | 21.4 | 36.6 | 494.2 | 719,600 | 45440 | 38.16 | 9.56 | 15,630 | 2,161 | |||||
Shandong Zhengde Metal Manufacturing Co., Ltd.adalah perusahaan produksi dan penjualan yang mengintegrasikan kumparan baja bergulir panas, kumparan baja bergulir dingin, kumparan baja galvanis, kumparan baja berlapis warna, baja bagian, pipa baja, kawat baja, mesh logam,baja tahan karat, aluminium, tembaga dan produk logam lainnya terintegrasi perusahaan besar.dengan lebih dari 100 jalur produksi, 4 laboratorium yang diakui secara nasional, 2 pusat teknik, dan 5 pusat teknologi perusahaan.Amerika Selatan, Eropa, Afrika, Oseania, Timur Tengah, dan Asia Tenggara.
